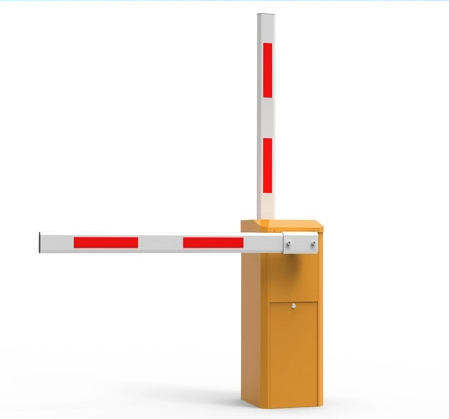

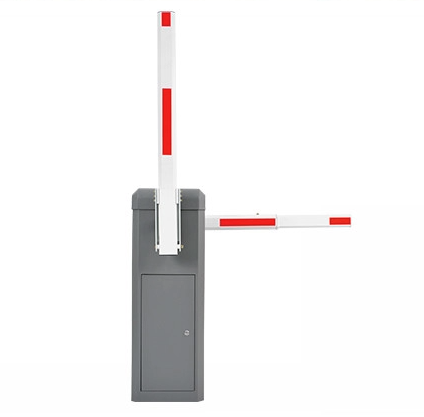

24VDC Motor Security Vehicle Barrier Heavy Duty Parking Barrier Gate Two Motor Two Booms For Community
Product Overview:
Thank you for purchasing the 5th generation brushless motor barrier gate from WONSUN. This product
adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control
speed regulation technology, left and right interchangeable quickly, no clutch design, more reliable quality,
more convenient to use, the movement adopts two-stage worm gear drive, Three-curved connection rod
structure, and the arm works fast and stable. Easy maintenance and long service life.
Car Park Barrier Specification:
| Working temperature(motor): | -30℃~+70℃ |
| Rated voltage: | DC24V |
| Running speed: | 2.5s-6s |
| Rated power: | 150W |
| Remote control distance: | ≤100M(in the open place) |
| Max length of arm: | 6M straight arm or telescopic arm |
Car Park Barrier Advantages:
1. Speed adjustable from 2.5s to 6s
2. Arm direction change left or right
3. New design of antiskid device to make sure the safety.
4. All components of machine core upgraded to precision cast steel.
5. Auto-delay when closing(adjustable)
6 RS485 or CAN network communication interface(no need to install module)
Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make
sure the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two springs simultaneously.
4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means
spring is too tight, loose a little. Close arm
Packing List
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S |
| 4.5m>L≥3m | 3S |
| 90°folding arm | L≤5m | 5S |
| 180°folding arm | L≤5m | 5S |
| Two fence arm | 5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S |

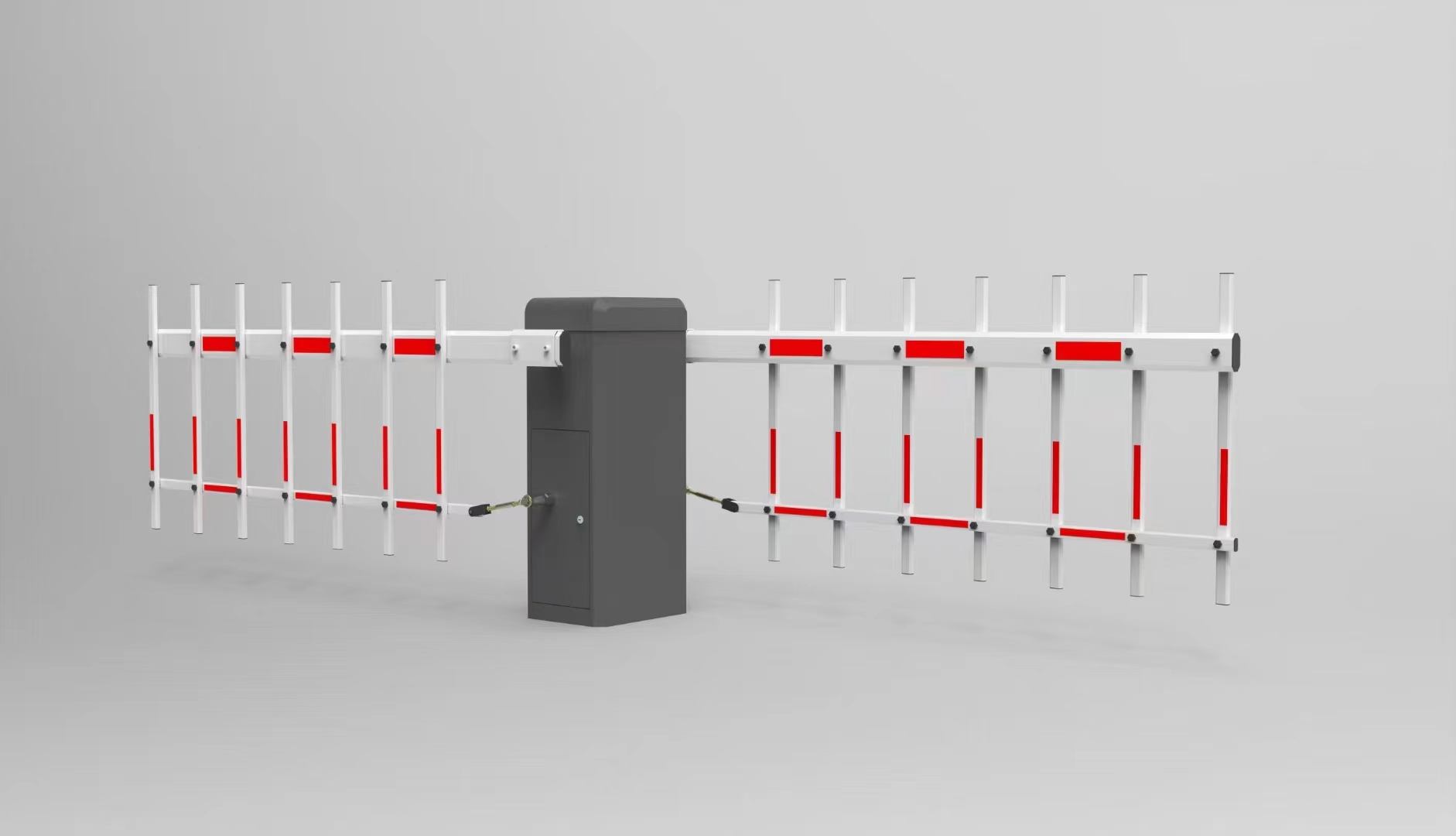

| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire to work.
2. Traffic light interface: 2A 24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation
output can be connected.
4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to
connect the switch signal output by the ground sensor.
Product Maintenance
10.1 Keep the barrier gate clean
10.2 Check the joints ever month in case of any loose parts.
10.3 Check the spring elasticity after the barrier gate running 3000 times.
10.4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
10.5 Remote control distance will be shortened or not work in case like big object screening,battery
exhausting,extreme weathers.
Our Services
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the standard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
Servo motor 2 years warranty, DC brushless motor 1 year warranty, We have well trained and professional sales & after-sale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5-10 working days
50-100 sets:10-15 working days
200-500 sets:15-20 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
T/T, western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6- How to place order?
Please contact Nancy Tao for more details.
