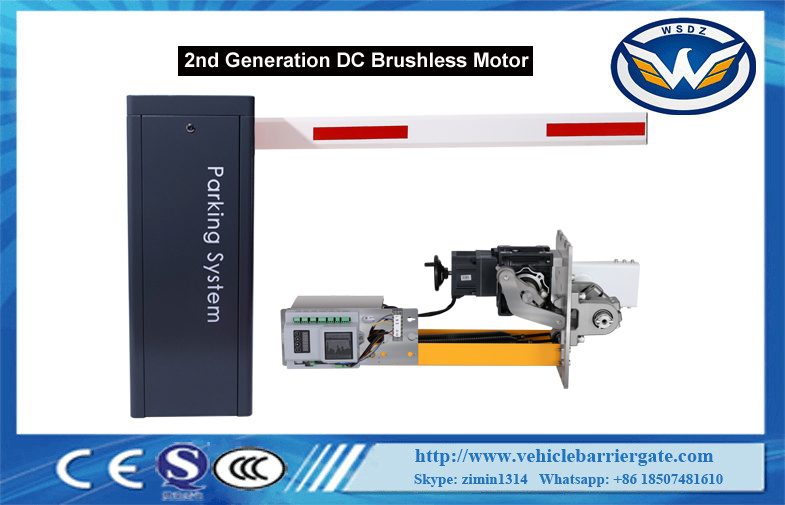

Hall Limit Parking Barrier Gates 24VDC Brushless Motor Interchanged Arm Direction

Name: Hall Limit Parking Barrier Gates 24VDC Brushless Motor Interchanged Arm Direction
Brand: WONSUN
Price: 1 USD

Brand Name : WONSUN

Model Number : DZ-130

Certification : CE

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability : 1000 Sets/Month

Delivery Time : 3-7 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Product name : 24VDC Brushless Motor Parking Lot Barrier Gates Speed Adjustable Hall Limit

Max boom length : 6m aluminum alloy arm

Color : Red, yellow， grey

Housing dimension : 335 * 285 * 926mm

Power Supply : DC24V

Working Temperature : -35℃~+85℃

Contact Now

24VDC Brushless Motor Parking Lot Barrier Gates Speed Adjustable Hall Limit

Functions

1.The operation speed can be adjusted(2s to 6s).

2.Arm direction can be quickly interchanged.

3.Barrier gate up &down signal relay switch output.

4. R&G Traffic light relay switch signal output.

5. External loop detector signal anti-smashing interface.

6. Infrared sensor signal anti-smashing interface.

7. Count mode interface.

8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.

9. High-sensitivity arm auto reverse function (intensity can be adjusted).

10. Parking system interface.

Technical data

Working Temperature	-35℃~+85℃
Power Supply	DC24V
Open/close Speed	2Sec to 6sec(adjustable)
Rated Current	8.58A
Rated Power	140W
Motor No-load Speed	1850rpm
Rated Rotating Speed	1400rpm
Output Power	56.8N.m
Humidity	≤90%
Remote Control Distance	≤100m (open, sunny weather)
Protection Grade	IP44
Max Boom Length	6M

Features:

Hall Limit Parking Barrier Gates 24VDC Brushless Motor Interchanged Arm Direction

RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.

Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
DC Brushless Motor Speed Adjustable Vehicle Barrier Gate With Hall Limit
