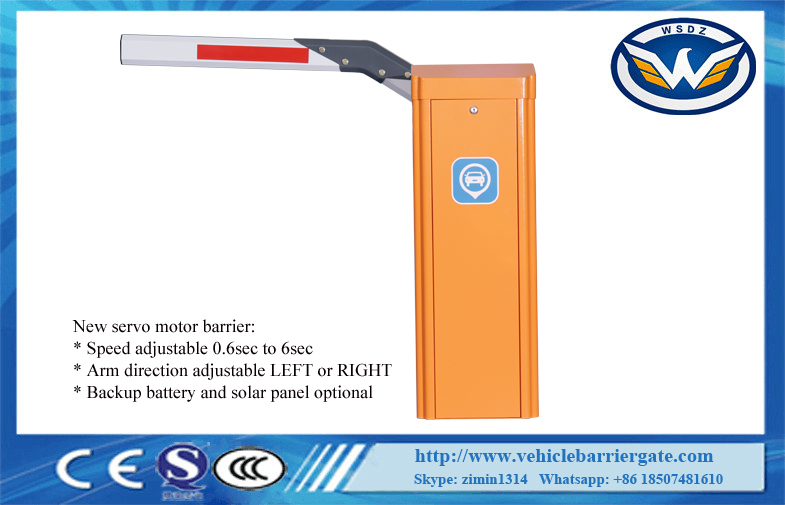

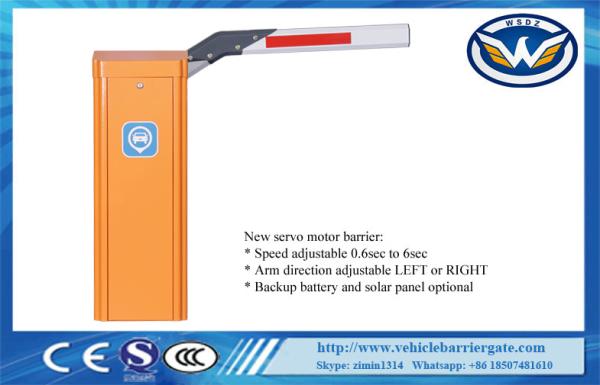

High-end Servo Motor DC 24V Parking Barrier Gate Barreas With Curved Arm Residential Gate
China 5 Star supplier of barrier gate. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia

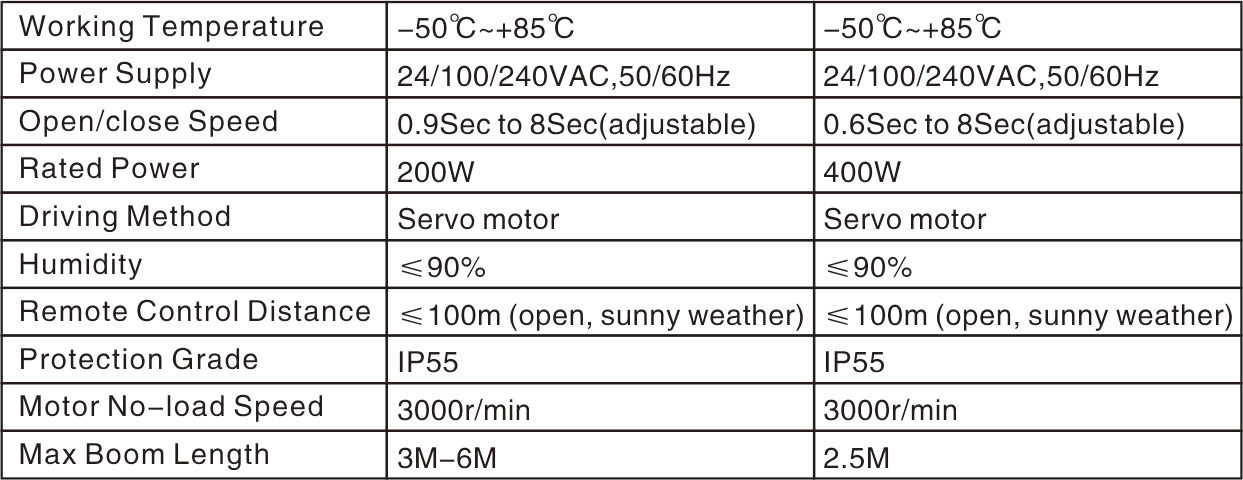

Technical Parameter List
Functions and Features
1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)
Operation Time and Boom Length Configuration Parameter
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| 80*45mm≥2.5m | 0.6S | 0.83m |
| 80*45mm≥3m | 0.9S | 0.83m |
| 100*45mm≥4.5m | 3S | 0.83m |
| 100*45mm≥6m | 6S | 0.83m |
| 80*45mm 90°boom≥3m | 1.8S | 0.83m |
| 80*45mm 90°boom≥3.5m | 3S | 0.83m |
| 80*45mm 90°boom≥5m | 6S | 0.83m |
| 80*45mm 180°boom≥3m | 1.8S | 0.83m |
| 80*45mm 180°boom≥4m | 6S | 0.83m |
| 80*45mm 180°boom≥5m | 6S | 0.83m |
| 100*45mm 2 fence boom≥3.5m | 3S | 0.83m, small vertical boom length is 0.8m, landing boom length 0.9m |
| 100*45mm 2 fence boom≥5m | 6S | 0.83m, small vertical boom length is 0.8m, landing boom length is 0.9m |
| 100*45mm 3 fence boom≥3m | 3S | 0.83m, small vertical boom length is 1.5m,landing boom length is 1.6m |
| 100*45mm 3 fence boom≥4m | 6S | 0.83m, small vertical boom length is 1.5m, landing boom length is 1.6m |
Packing list
| Name | Specification | Qty | Unit | Note |
| Hexagon screw | M12*70 | 2 | Piece | Fixing the boom |
| Boom press board | | 1 | piece | |
| Mounting batten | | 2 | piece | Fixing the case |
| Expansion bolt | M12*150 | 4 | unit | Fixing the case |
| Case Key | | 2 | unit | |
| Remote controller | | 2 | unit | |
| Instruction | | 1 | piece | |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
