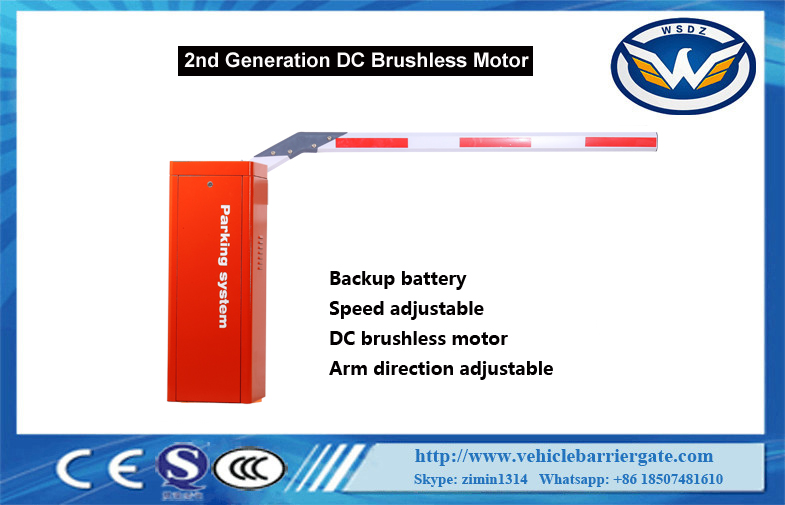

New Curved Arm Parking Barrier Gate Arms For Parking Lots With Speed Adjustable
Contact keira to get barrier videos and pictures!
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 1.5Sec to 6sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP44 |
| Max Boom Length | 6M |
Type Length and Operating Speed Parameters of Sluice Bar
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
| 4M>L≥3M | 5S |
Features
3.1 The running speed can be adjusted from 1.5s to 8s
3.2 Can be quickly interchanged
3.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
3.4 Curved crank arm three- link movement structure, the operation is stable
3.5 Wireless remote control control open/close
3.6 Auto reverse function(force adjustable)
3.7 Infrared photocells connector is available
3.8 Loop detector connector is available.
3.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
3.10 Connector for traffic light(AC220V,power less than 40W)
3.11 Offering dry contact signal for car parking system(COM,NC,NO)
3.12Auto-delay when closing(adjustable)
3.13 RS485 or CAN network communication interface(no need to install module)
3.14 Counting interface
3.15 24V backup battery interface(Can be charged by using solar energy)
RFQ:
Q: What's the order process?
A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.
Service Items
9.1 One year’s free servicing is supplied(not including the arm);
9.2 Lifetime charged servicing is offered;
9.3 Technology servicing is supplied.
The following situations are charged for servicing(or changing):
9.1Broken by the wrong installation.
9.2Broken by improper voltage.
9.3The surfaces of the system destroyed by wrong installation or use.
9.4Broken by natural disaster.
9.5Overdue.
9.6Servicing items out of our promises.
