High Security Barrier Gate Electric Intelligent Boom Barrier With Foldable Barrier Arm
Wonsun boom barrier is designed using innovative technology and manufactured with precision
machinery to guaarantee satisfaction in quality and reliability for years to come.
Wonsun boom barrier has been lab tested for more than 5 millions opening / closing and still without any degrade in performance. No limit switch design minimizes mechanical wear and enchances barrier life time.
WSTP-115 series can use WONSUN 1st generation machine core
Basic Technical Specifications:
| Product Name | High Security Barrier Gate Electric Intelligent Boom Barrier With Foldable Barrier Arm |
| Model Nuber | WSTP-115 |
| Operation Time | 0.6s,1s1.8s,3s,6s |
| Rating Voltage | AC220V/110V±10%,50/60HZ |
| Power Supply | 120W |
| Size | 320*280*920mm(L*W*H) |

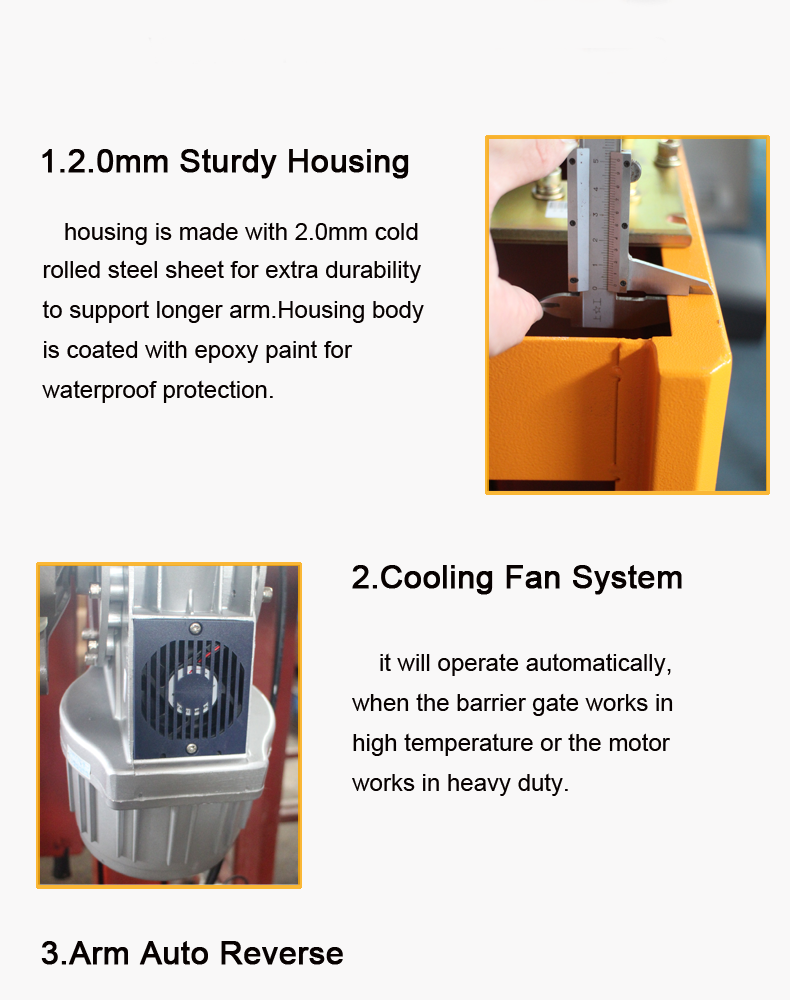

| Material | 2.0mm thickness Galvanized plate sheet or cold roll steel sheet |
| Arm Option | Straight arm, 1-6 m for option, 45*80mm or 45*100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence |
| Remote Control Distance | ≥30meters |
| Working Temperature | -45℃ to +75℃ |
| Packing | 1030*380*450mm,with seven layers carton size,inside with air bubble film for protection |
| Warranty | one year |
Basic Features:
| 1) Manual release for power off. |
| 2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking. |
| 3) Die-casting aluminum alloy motor, precision and good at thermal radiating. |
| 4) Motor cooling fan, solving the problem of heat-protection. |
| 5) Double safety limit switches (photocell electrical limit switch/motor memory sensor). |
| 6) Reversing on obstacle. |
| 7) Arm swing out when Vehicle hitting the arm. |
| 8) Support the INFRARER PHTOCELL for anti-bumping function (optional). |
| 9) Support the external and internal VEHICLE LOOP DETECTOR (optional). |
| 10) Traffic light interface. |
| 11) Wire control (switch signal)/ Remote control (418MHZ). |
| 12) RS485 communication module (optional). |
Packing:
Shippment&Payment:
Our Service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
