Ac220v Automatic Intelligent Vehicle Barrier Gates , Orange Car Park Barriers
Barrier Gate Description:
| 1. Straight arm , folding arm , fence arm optional |
| 2. The fastest landing gear speed 1.8S, 3S , 6S Customized |
| 3. Use of intelligent, precision manufacturing, advanced waterproof structure and spraying process. |
| 4. Unique design of barrier gate's core |
| 5. With intelligent self-test, open priority protection, preventing damage to vehicles protection, blocking protection, self-locking function limit position. |
DZ-130 Intelligent Barrier Features:
| 1. AC motor is more powerful and no maintenance. |
| 2. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate closing time is also arranged from 1.8 second to 6 seconds. |
| 3. All the operation process is soft without any noise and shaking. |
| 4. Infrared photocell interface, Loop detector interface and IC system |
| 5. interface are reserved for the other functions. |
| 6. Green light and red light are used inside for indication the position of the beam. |
Each barrier will include:
| 1 pcs Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
Optional Accessories:
| 1. Loop detector: single loop detector or dual channel loop detector |
| 2. Photocell |
| 3. Flash light |
| 4. Boom rest/ arm holder |
| 5. Control board |
| 6. RS485 communication interface |

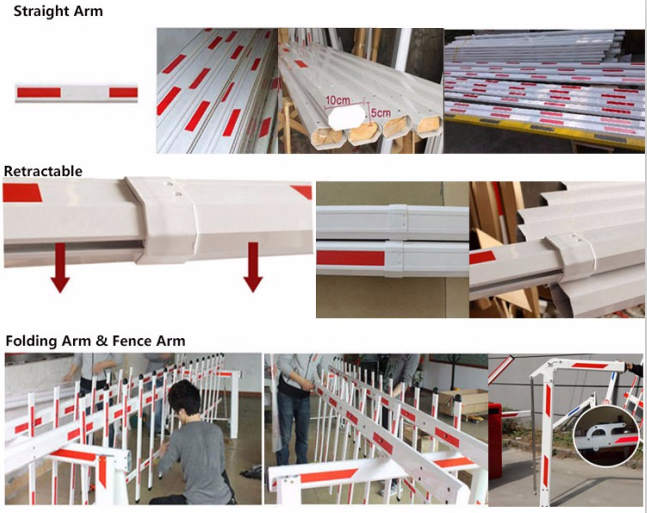

Optional Arm Type:
a) Straight arm- suitable for broad area without height limitation
b) Folding arm- suitable for the place with height limitation such as underground parking lot
c) Grid arm- suitable for the place with the ban of animals.
1. Straight up to 6M in general, can be customized.
2. If the straight arm is too long, easy to bend and deformation during transport, and air express requirements of arm length can not exceed 3M, telescopic rod generally consists of two sections, each section of the 3M, the maximum can be extended to 5.8M.
3. The maximum length of the fence type is 4.5M
4. Folding type up to 5M, in general use of underground garage, can be customized.
